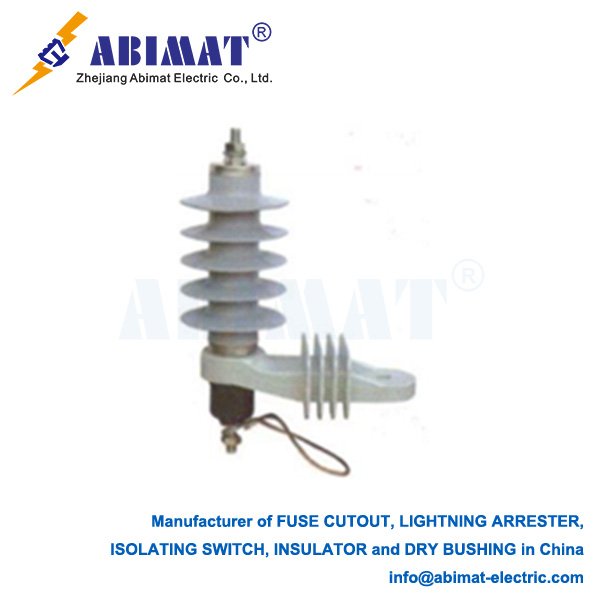

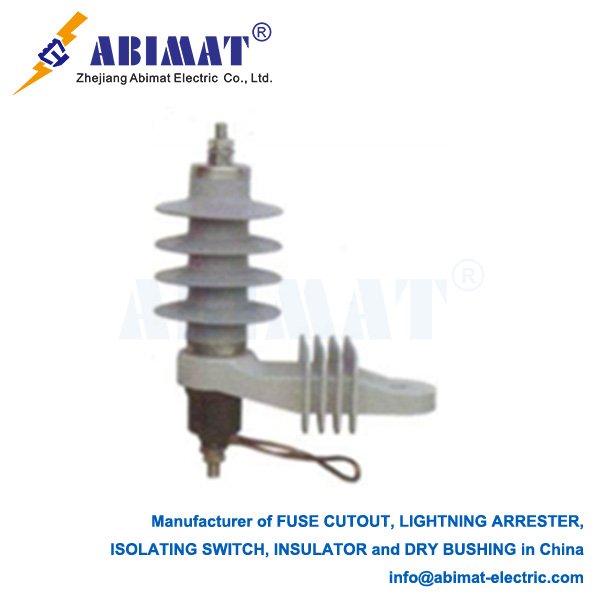

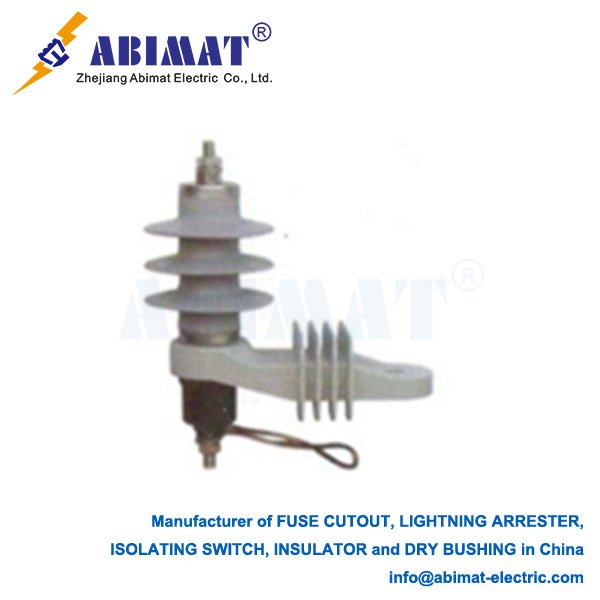

132kV Lightning Arresters: Safeguarding High-Voltage Transmission Infrastructure
Within high-voltage (HV) transmission networks operating at 132kV, protecting critical and expensive assets from destructive voltage surges is paramount. 132kV lightning arresters (often termed surge arresters) serve as the primary defense mechanism against transient overvoltages caused primarily by lightning strikes and switching operations. These devices are engineered to ensure system reliability, prevent equipment failure, and minimize costly downtime across vital power infrastructure.
Core Function: The High-Voltage Guardian
The fundamental role of a 132kV lightning arrester is to act as an ultra-fast, voltage-sensitive switch connected between the phase conductor and earth. Under normal system operating conditions (when voltage remains below a specific threshold), the arrester exhibits extremely high impedance, effectively behaving as an open circuit and allowing normal current flow unimpeded. However, upon the arrival of a steep-fronted, high-magnitude transient overvoltage – potentially reaching millions of volts – the arrester instantaneously “switches” to a state of very low impedance. This creates a preferential, low-resistance path, safely diverting the massive surge current to ground. Crucially, while conducting this current, the arrester clamps the voltage appearing across the terminals of the protected equipment (Terminal Voltage or Residual Voltage) to a predetermined safe level, significantly below the equipment’s Basic Impulse Insulation Level (BIL). Once the transient energy is dissipated and system voltage normalizes, the arrester autonomously recovers its high-impedance state.
Technology Foundation: Advanced Metal Oxide Varistors (MOVs)
Modern 132kV arresters rely exclusively on Zinc Oxide (ZnO) varistor technology. The core consists of a carefully engineered stack of sintered ZnO discs housed within a robust, weatherproof enclosure (typically porcelain or silicone rubber polymer). Each disc comprises ZnO grains doped with precise metal oxides (e.g., Bi₂O₃, Sb₂O₃, CoO, MnO), forming a vast matrix of p-n junctions at grain boundaries.
Normal Operation: At voltages below the arrester’s operating threshold, the p-n junctions act as high-resistance barriers, permitting only minimal leakage current (typically microamps).
Surge Conditions: When the voltage exceeds the threshold (due to a lightning or switching surge), the intense electric field causes rapid breakdown of the p-n junctions via quantum mechanical tunneling. This results in an extremely non-linear, dramatic decrease in resistance, enabling the surge current to flow freely to earth while clamping the voltage.
Self-Healing: As the surge voltage decays, the junctions inherently re-establish their high-resistance barriers, restoring the arrester to its blocking state without external intervention.
ZnO technology offers unparalleled advantages for HV applications like 132kV:
Superior Non-linearity: Provides lower protective levels (Up) relative to system BIL.
Nanosecond Response: Virtually instantaneous reaction to fast transients.
High Energy Absorption: Capable of handling the immense energy associated with direct lightning strikes near HV lines/substations.
Minimal Follow Current: Negligible power-frequency current after surge diversion, eliminating the need for series gaps.
Stability & Longevity: Proven performance under continuous operating voltage and repeated surge stresses. Manufacturers like ABIMAT employ rigorous quality control and advanced formulations to ensure reliability at this voltage class.
Critical Performance Parameters for 132kV Arresters
Selection and application demand meticulous attention to key specifications defined by standards (IEC 60099-4, IEEE C62.11):
I.Rated Voltage (Ur): The maximum permissible power-frequency voltage (RMS) the arrester can withstand across its terminals for a specified short duration (typically 10 seconds) under defined temporary overvoltage (TOV) conditions (e.g., earth faults). For a 132kV system (nominal phase-phase voltage), Ur is typically selected between 120kV and 144kV, based on system grounding (solidly grounded, resistance grounded, isolated) and expected TOV magnitude and duration. Ur MUST exceed the maximum prospective TOV.
II.Maximum Continuous Operating Voltage (MCOV): The highest RMS power-frequency voltage (phase-to-earth) that can be continuously applied across the arrester terminals without degrading its long-term performance. For a solidly grounded 132kV system (V_phase-earth ≈ 76.2kV), an MCOV of 84kV, 90kV, or 96kV is common, providing necessary safety margin.
III.Nominal Discharge Current (In): The peak value of the standard 8/20 µs lightning current wave used for classification and routine testing (e.g., 10kA, 20kA). Higher In ratings (e.g., 20kA) indicate greater robustness and are standard for HV transmission line and substation applications exposed to high lightning intensity.
IV.Line Discharge Class (IEC) / Duty Cycle (IEEE): Classifies the arrester’s ability to absorb energy from line discharges following switching operations. Higher classes (e.g., Class 3,4,5) denote greater energy handling capability, critical for 132kV systems.
V.Lightning Impulse Protective Level (LPL / Up): The maximum residual voltage measured across the arrester terminals when subjected to a standard 8/20 µs impulse current of a specific magnitude (e.g., Up(10kA), Up(20kA)). This is the critical “clamping voltage.” It must be significantly lower than the BIL of the protected equipment (e.g., 550kV or 650kV for 132kV transformers/switchgear).
VI.Switching Impulse Protective Level (SPL): The maximum residual voltage under a standard switching surge impulse current (e.g., 30/60 µs, 45/90 µs, or 250/2500 µs wave).
VII.Steep Current Impulse Protective Level: Residual voltage under a very fast front impulse (e.g., 1/2 µs), important for close-up strikes.
VIII.Pressure Relief Rating: The maximum prospective symmetrical fault current (kA RMS) the arrester housing can safely withstand and interrupt in the event of an internal failure, preventing violent rupture. This is absolutely critical for personnel safety and equipment protection within HV substations. Integral disconnectors may visually indicate failure.
IX.Creepage Distance: The leakage distance over the insulating housing surface, sized according to the specific pollution severity class (IEC 60815) of the installation site.
Applications in 132kV Systems
132kV lightning arresters are strategically deployed at key points:
Transformer Protection: Directly connected to HV bushings of 132kV power transformers (primary side).
Substation Entrances: Protecting incoming/outgoing transmission lines at the substation boundary.
Busbar Protection: Shielding main and transfer busbars within switchyards.
Shunt Reactor/Capacitor Bank Protection: Mitigating switching surges associated with reactive power compensation equipment.
Cable Sealing End Protection: At transitions between overhead lines and underground cables.
Critical Generator Step-Up (GSU) Transformer Protection: At power plant interfaces.
Selection & Coordination
Selection involves rigorous matching of arrester ratings (Ur, MCOV, In, Protective Levels, Energy Class) to:
System nominal voltage (132kV) and grounding practices.
Maximum prospective Temporary Overvoltages (TOVs).
Lightning Exposure Level (keraunic level) and location (tower, substation).
BIL and insulation coordination requirements of protected equipment.
Site pollution severity and altitude (requiring creepage correction).
Prospective short-circuit current for pressure relief rating. Coordination studies ensure the arrester provides effective protection without compromising upstream/downstream devices.
Monitoring & Maintenance
While designed for long, maintenance-free service, monitoring is vital:
Visual Inspection: Regular checks for housing damage (cracks, tracking), pollution buildup, terminal corrosion, and leakage indicators.
Leakage Current Monitoring: Online or offline measurement of resistive leakage current component can indicate early degradation of ZnO blocks.
Surge Counters: Record the number of surge events exceeding a threshold.
Thermal Imaging: Can detect abnormal heating due to internal degradation. Prompt replacement of suspect or failed units is essential for continued system security.
Conclusion
The 132kV lightning arrester, underpinned by advanced ZnO varistor technology, is an indispensable component for the security and reliability of high-voltage transmission networks. Its ability to instantaneously limit potentially catastrophic overvoltages to safe levels protects multi-million dollar equipment, ensures grid stability, and guarantees continuous power supply. Precise selection based on comprehensive system analysis, adherence to standards, and diligent monitoring – supported by quality manufacturers like ABIMAT – are fundamental for maximizing the operational lifespan and effectiveness of these critical guardians of the grid.
