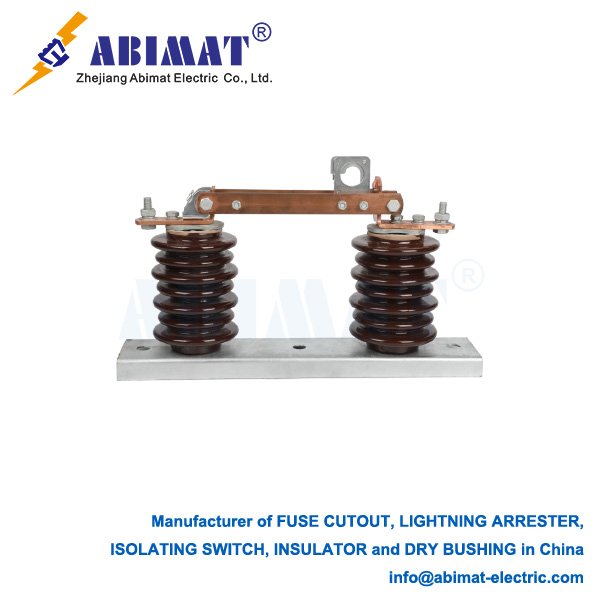

345 kV disconnecting switches (DS) serve as vital isolation devices in extra-high-voltage transmission networks, enabling safe maintenance, circuit reconfiguration, and fault isolation. Their design addresses unique challenges at this voltage class, where switching overvoltages, corona effects, and seismic forces demand engineered solutions.
Core Technical Requirements
I. Dielectric Integrity
– Air Clearance: Minimum 2.9 m phase-to-ground (IEEE Std 1527)
– Creepage Distance: ≥25 mm/kV (RTV silicone-coated insulators)
– BIL Rating: 1300 kV lightning impulse withstand
– Corona Control: Radio-influence voltage (RIV) <500 μV at 1.1× operating voltage
II. Mechanical Performance
– Operating Torque: 150–300 N·m for rotating-arm designs
– Ice Breaking: Capable of operating under 20 mm radial ice (IEC 62271-102)
– Seismic Rating: 0.5g PGA (peak ground acceleration) without damage
Advanced Design Features
Contact Systems
– Self-aligning tulips: Copper-chromium-zirconium (CuCrZr) alloy contacts maintain ≤50 μΩ resistance after 10,000 operations
– Arcless auxiliary contacts: Pre-insertion resistors limit VFTO (Very Fast Transient Overvoltage) <1.5 p.u.
Insulation Coordination
– Composite insulators: FRP core with hydrophobic silicone sheds (leakage distance: 9,300 mm)
– Grading rings: Optimized diameter-to-tube ratio (1:2.5) controls electric field <15 kV/cm
Failure Modes & Mitigation
| Risk | Detection Method | Preventive Measure |
|---|---|---|
| Contact oxidation | ΔR >100 μΩ (online monitoring) | Nitrogen-filled contact chambers |
| Insulator pollution | ESDD >0.05 mg/cm² (insp.) | Periodic RIV testing |
| Mechanical binding | Torque >350 N·m | Anti-icing heaters (-40°C rating) |
| VFTO damage | dV/dt >5 kV/ns measurement | Snubber circuits across contacts |
Smart Switching Innovations
– Condition monitoring: Integrated sensors track:
– Contact temperature (Fiber Bragg Grating)
– Motor current signature analysis (MCSA)
– Partial discharge >5 pC sensitivity
– Digital twins: ANSYS-based simulation predicts contact erosion within 3% accuracy
– Robotic operation: Remotely operated crawlers for hazardous environments
Testing & Compliance
– Type tests per IEC 62271-102:
– 1000 mechanical operations at -40°C to +40°C
– Short-circuit withstand: 40 kA/3s (rated) to 63 kA/1s (design)
– Radio interference voltage (RIV) testing at 1.1× 362 kV
– Seismic validation: Shake-table testing with IEEE 693 protocols
Conclusion
345 kV disconnecting switches balance electrical robustness with mechanical precision. Modern designs integrate monitoring and adaptive control, transforming passive components into intelligent grid assets. As renewables drive grid reconfiguration frequency upward, next-gen switches with predictive diagnostics and reduced VFTO will become critical for EHV network resilience. ABMAT electric report 0.0007% forced outage rates with monitored switches—40% lower than conventional units.
