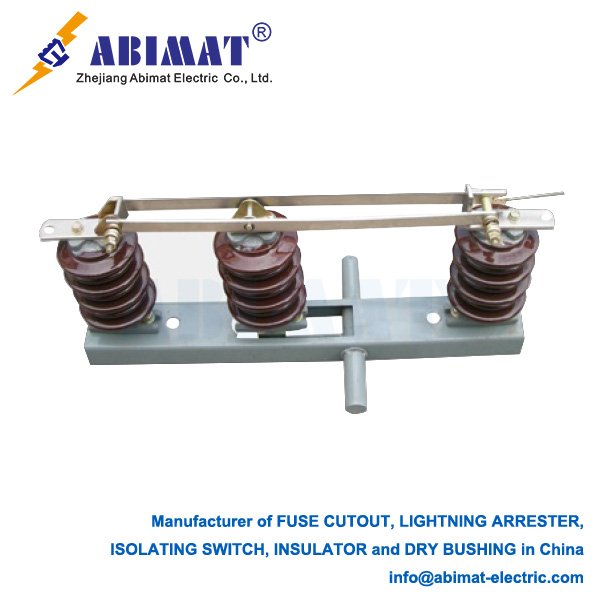

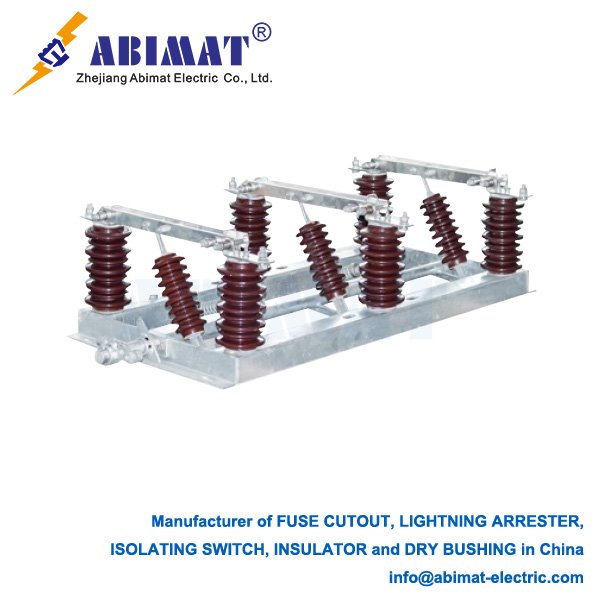

High Voltage Disconnect Switch
A high voltage disconnect switch is an important part in systems that send and distribute electrical power. Its main job is to separate a circuit or equipment safely. This separation is needed to keep people safe when they do maintenance, repairs, or checks on the equipment. You need to know one key thing: this switch isn’t made to stop the current that’s carrying a load or the current from a fault. That job belongs to a circuit breaker. The disconnect switch only works after a circuit breaker has turned off the power to the circuit. This way, it opens or closes when there’s no load on it.
These switches are built to be very reliable. They have to handle different tough conditions from the environment. For example, they need to stand extreme hot or cold temperatures, strong winds, and ice. Their design has some important features. The parts that move, like the mechanical components, are often made of strong materials that don’t rust easily. Galvanized steel or aluminum alloys are common choices here. For the insulators—parts that stop electricity from leaking—porcelain or composite polymer is used. The blades of the switch, which help with switching, are usually coated with silver. This coating makes sure electricity flows through well and keeps the resistance at the contacts low.
You can operate these switches in two main ways. One is manual: you use a rotary handle or a hot-stick to move it. The other is motorized, which lets you control it from far away. This motorized type is useful, especially in substations where no one is working on-site all the time. There’s a very important safety feature too. When the switch is open, there’s a clear gap of air between the contacts. This gap is easy to see. It tells people clearly that the circuit is separated and safe for them to work on.
To sum up, the Abimat high voltage disconnect switch is a safety device you can’t do without. It makes sure high voltage equipment is physically separated from the power. This protects the people working on it and lets them do maintenance safely. And this safety is really important for keeping the whole power grid working well and reliably.
